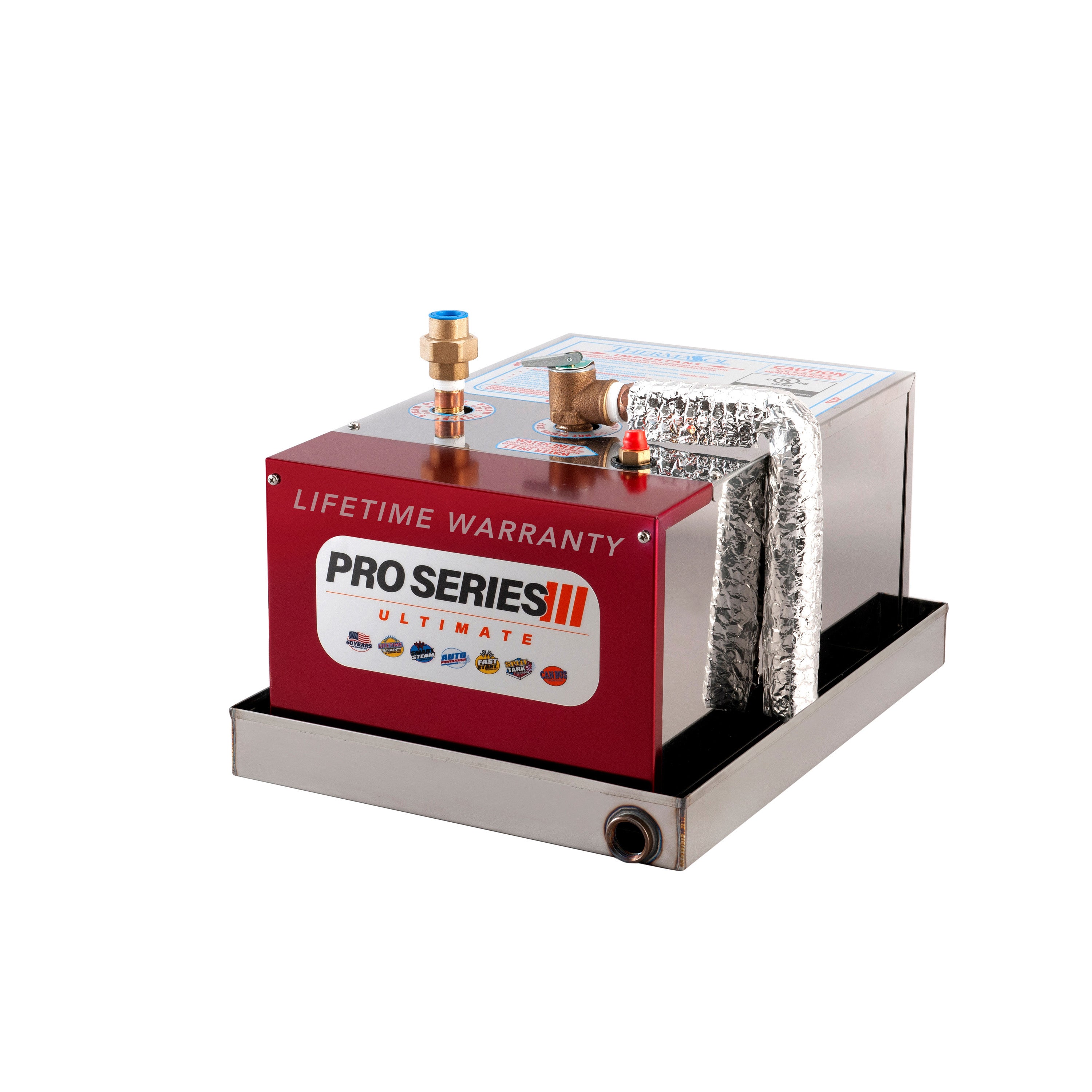

ThermaSol PRO Series III 1200 24kW Steam Generator
- Product Description
- Product Features and Specifications
- Cancellation Policy
- Delivery Policy
- Return Policy
- Shipping Policy
- Warranty
Featuring Constant Steam, Split Tank, Fast Start, and PowerFlush exclusive technologies, the ThermaSol PROIII-1200 is a 24kW home steam shower generator designed for steam baths with dimensions 751 to 1200 adjusted cubic feet (ACF). ThermaSol's PRO Series Steam Shower Generators combine the latest technology with ThermaSol durability, performance, and efficiency to ensure a consistent steam shower experience every time. A welcome addition for any bathing enthusiast, The PROIII Series raises the bar with an advanced cleaning system, stainless steel drain pan and is the only model to offer the ultimate Smart Steam (patented) technology, eliminating temperature fluctuations.
| Brand | ThermaSol |
|---|---|
| FEATURES | |
| Steam Output | Constant steam flow and consistent steam output |
| Steam Lag and Bursts | No steam lag and no sudden steam bursts |
| Smart Steam Technology | Patented Smart Steam Technology helps keep temperature stable and reduces fluctuations |
| FastStart Technology | FastStart Technology so the room produces steam in seconds, not minutes |
| PowerFlush Technology | PowerFlush pressurized inner tank cleaning system that helps flush out sediment |
| System Compatibility | Compatible with HydroVive and Serenity digital systems |
| Control Technology | Two way digital CAN-bus communication between generator and controls |
| Tank Design | Split Tank design to improve reliability and longevity |
| Drain Pan | Stainless steel drain pan included |
| Construction and Elements | Stainless steel construction with professional grade, low watt density heating elements |
| Safety Relief Valve | Pre plumbed safety relief valve |
| Connections | 1/2" steam outlet union and braided stainless water supply connector |
| Application | Steam Sauna Bath |
| Country of Origin | Designed and built in the USA |
| Warranty | Lifetime residential warranty on the generator |
| SPECIFICATIONS | |
| PROIII-84 | Kilowatt Rating: 6 kW Maximum Room Size: 84 ACF Maximum Amperage: 28 A Heater Weight: 44 lbs Electrical Connection: NEMA 6-30P plug |
| PROIII-140 | Kilowatt Rating: 8 kW Maximum Room Size: 140 ACF Maximum Amperage: 37 A Heater Weight: 44 lbs Electrical Connection: NEMA 6-50P plug |
| PROIII-240 | Kilowatt Rating: 10 kW Maximum Room Size: 240 ACF Maximum Amperage: 46 A Heater Weight: 44 lbs Electrical Connection: NEMA 6-50P plug |
| PROIII-395 | Kilowatt Rating: 11 kW Maximum Room Size: 395 ACF Maximum Amperage: 48 A Heater Weight: 44 lbs Electrical Connection: Hardwired |
| PROIII-575 | Kilowatt Rating: 15 kW Maximum Room Size: 575 ACF Maximum Amperage: 69 A Heater Weight: 48 lbs Electrical Connection: Hardwired |
| PROIII-750 | Kilowatt Rating: 20 kW Maximum Room Size: 750 ACF Maximum Amperage: 92 A Heater Weight: 48 lbs Electrical Connection: Hardwired |
| PROIII-1200 | Kilowatt Rating: 24 kW Maximum Room Size: 1200 ACF Maximum Amperage: 110 A Heater Weight: 48 lbs Electrical Connection: Hardwired |
Cancellations are allowed before the order is processed or shipped. Once the order has shipped, cancellations are no longer guaranteed. It is recommended to contact our team immediately for assistance.
Orders are processed and shipped within 24 to 48 hours. Most items are shipped via Ground or LTL freight, depending on the product size and weight. Sauna barrels and cabins include shipping or use a flat rate within the contiguous 48 states. For other items, actual shipping rates apply based on location. In hard-to-reach areas, a shipping premium may apply. Stones ship separately and incur $25 to $50 per box in shipping fees. Enhanced packaging is used for all shipments to reduce damage in transit. Customers may refuse delivery if damage is visible, or sign “Subject to concealed damage.”
Returns are accepted within 30 days of purchase for new and uninstalled items. Customers must request a Return Authorization (RA) by contacting Customer Service. If the return is due to shipping damage or an error on Bathing Brands’ part, return shipping will be covered. For other returns, the customer is responsible for return shipping. A boxing fee may apply ($20 to $50 depending on the item). If the item is damaged upon return, the customer will need to file a claim with the shipper.
Sauna barrels and cabins include shipping or use a flat rate within the contiguous 48 states. For other items, actual shipping rates apply based on location. In hard-to-reach areas, a shipping premium may apply. Stones ship separately and incur $25 to $50 per box in shipping fees.
Applicability: Warranty applies only if the product is installed per the provided instructions, properly maintained, and hasn’t been subjected to damage, misuse, or abuse.
Registration: You must complete and mail the Limited Warranty Registration form (included with your unit) to Bathing Brands within 60 days of installation. This warranty is non-transferable and extends only to the original purchaser.
Duration of Coverage:
PARTS
- Residential: 5 years from date of original installation.
- Commercial (clubs, condos, apartments, spas, military): 1 year from date of original installation.
- Brand exceptions: Huum products carry only a 90-day parts warranty.
LABOR
- Residential (U.S., non-commercial): 2 years of local labor coverage, plus an additional 3 years of factory labor if the product is returned to Bathing Brands.
- Commercial (U.S.): 1 year of factory labor (upon return) for defective parts; parts remain covered for 1 year.
Authorized Warranty Work: All warranty repairs must be (1) authorized by Bathing Brands before work begins and (2) performed by an authorized World Sauna Group representative. Any parts or labor performed without prior authorization won’t be covered.
Return Merchandise Authorization (RMA): Before returning any parts, you must obtain an RMA from Bathing Brands. Parts returned without an RMA may be refused replacement or repair.
Claim Procedure:
- Call Bathing Brands toll-free at 1-800-929-5425 or write to:
Bathing Brands – WSG 511 Glenn Ave, Wheeling, IL 60090
- Ship defective parts prepaid to that address. Return shipping of replacements is at the purchaser’s expense.
Limitations & Remedies:
- Liability is limited to repair or replacement of defective parts.
- Bathing Brands isn’t liable for any incidental or consequential damages.
- Some state laws may provide additional rights that supersede these limitations.
